API Solid Control Equipment Fluid Mud Cleaner for Oil Well Drilling

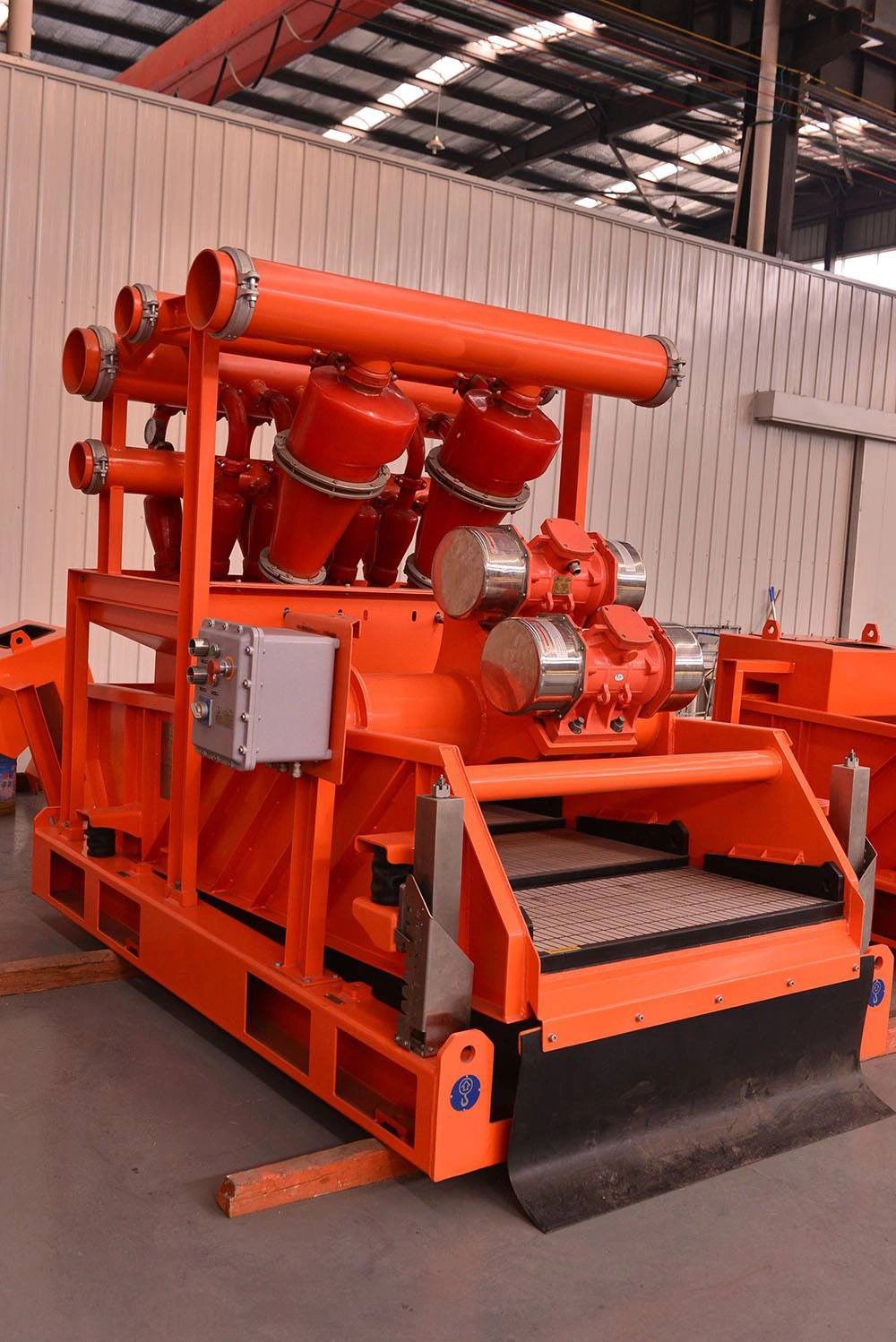

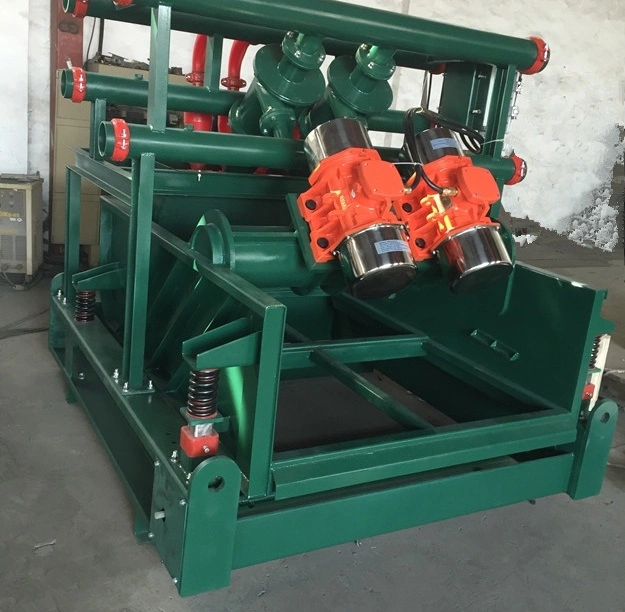

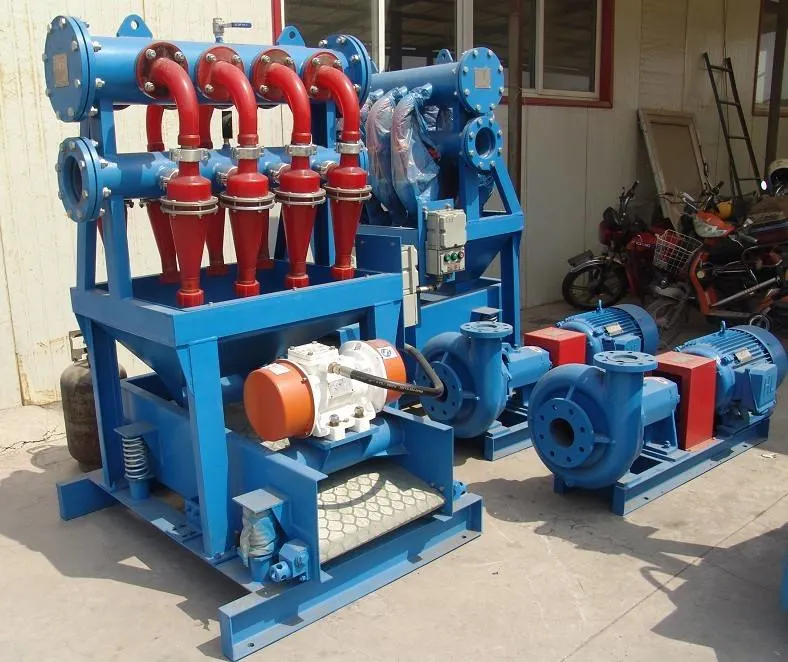

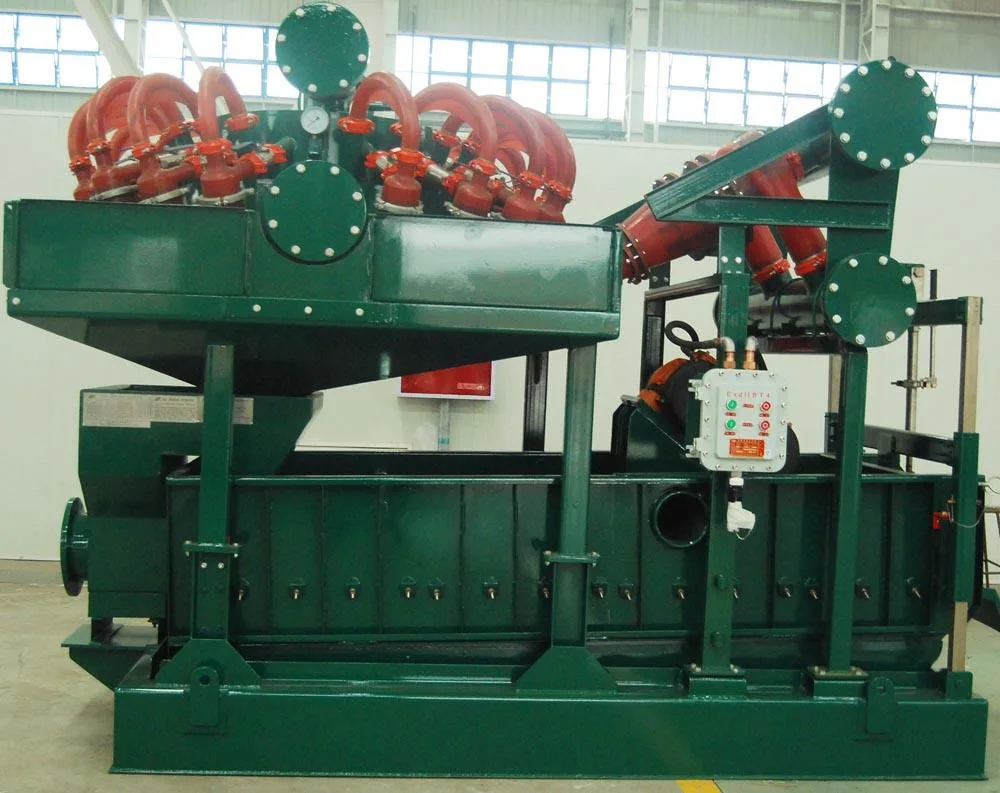

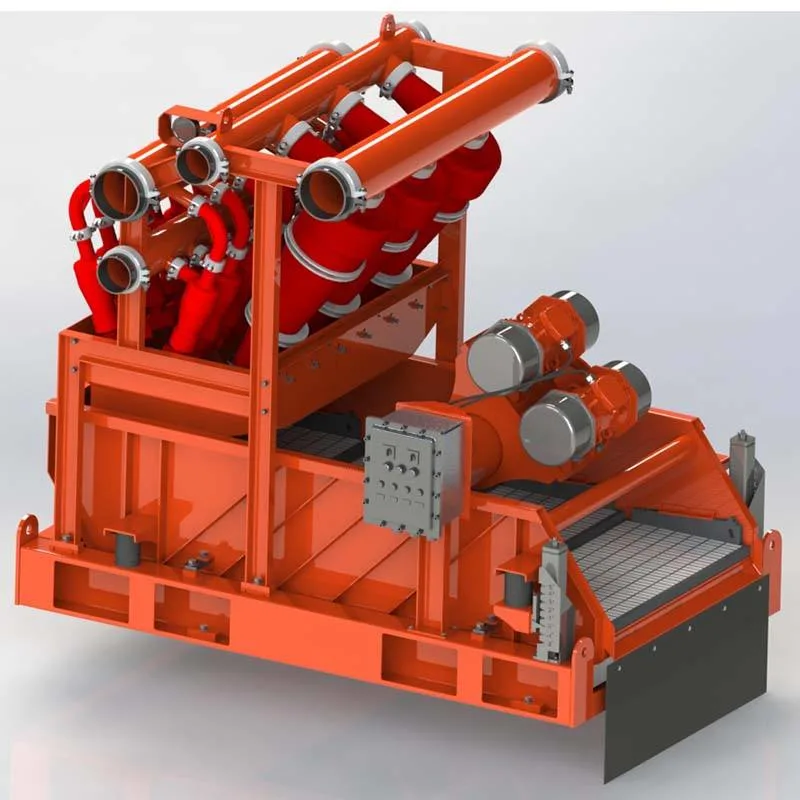

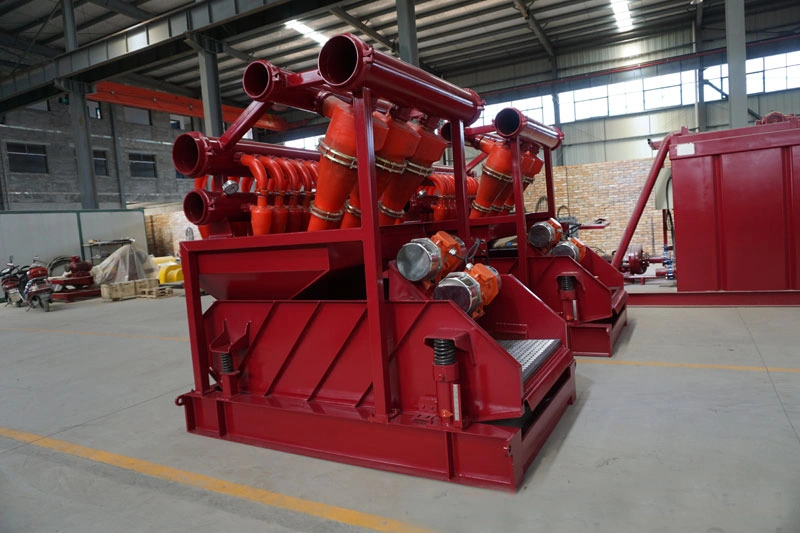

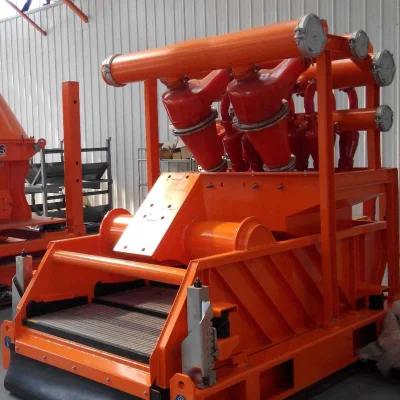

Mud cleaner
Description:
Mud Cleaner is the second stage and the third stage solids control equipment which is a combination of Desander, Desilter and underflow shaker shaker. Comparing with traditional separate Desander and Desilter, the mud cleaner has a higher cleaning function. The Underflow Screen equals another shaler shaker which receives the waste out from the cyclone nozzle for additional processing. So that mud cleaner could recover more valuable drilling mud. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud.

Features:
1.Desander & Desilter & Shale Shaker 3 in one unit mud cleaner for compact footprint.
2.Polyurethane Material hydrocyclone for long life
3.Removable hydrocyclone assembly from mud cleaner skid for adjust to be a shale shaker.
4.Patent electric shaker deck angle adjustable while working, mechanical deck angle adjustment for backup application.
5.Patent tighten rubber sealing for mud cleaner shaker deck and screen for fine screen
6.Shaker bottom deck made from Stainless Steel for long service life.
7.Heat treatment on complete shaker deck for High G force operation.
8.Pretensioned Shaker screen for fast screen replacement.
9.Famous Brand Vibration Motors : IEC Ex, ATEX and UL Certified mud cleaner
